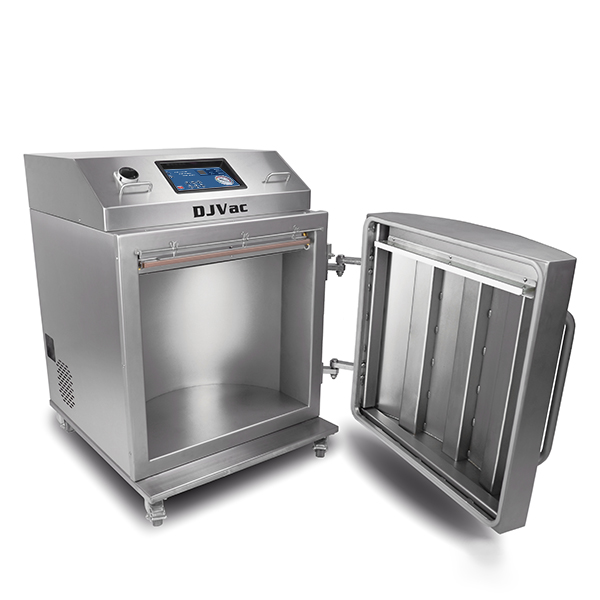

Bucket Vertical Bucket Vertical Vacuum Machine

The Vertical type vacuum packaging machine is specially designed for packing of vertical contents. Its intended for the vacuum packing of the inner bag in the drum. Contents are put into the vacuum bag in the drum(or a container in other shape) and then placed into the vacuum chamber for packing along with the bag and drum.



Features:



Smart Digital Control Panel

• Quick multi programs switch

• Panel mask Support customization

• Support manual sealing

• Accurate parameter control

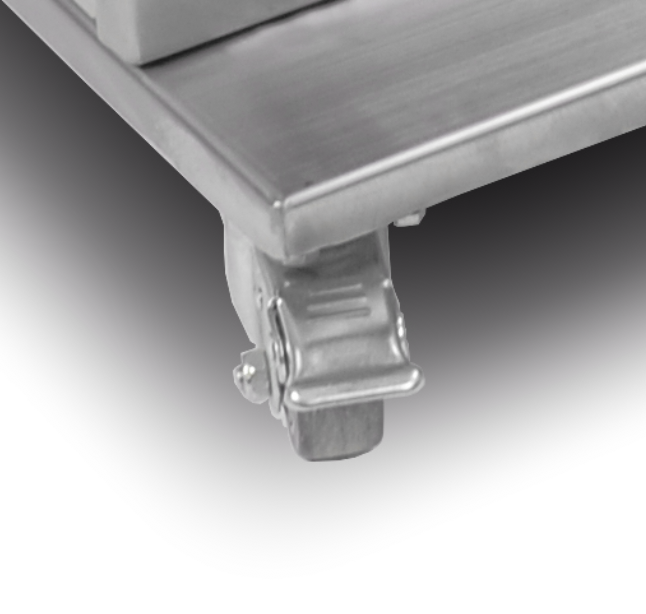

Heavy Caster

• Wear-resisting and slince universal wheels






Food-Grade Main Structure

• Constructed of high-quality SUS304 stainless steel

• Use Switzerland laser cutting device to produce

• Smooth feeling by meticulous surface treatment

• Strong structure by finite element analysis

• Glossy chamber and beautiful brushed shell


Robust Sealing System

• Design patent for fastener of seal wire for add service life

• Double-seam is alternative

• Double-seam with cutting-off is alternative

• Two sealing bars is alternative

• Plug-in without cables sealing system is alternative






Efficient Heat Dissipation

• Powerful thermal fan

• As soon as turn off machinefan will close

• Patent design for thermal holes

• Availble eight consecutive hours working



Easily Maintaining Design

• Simple to open or close the shell

• Clear oil level viewing window

• Not difficult to replace the oil of vacuum pump

• Easy to displace wearing parts


Options:





Gas Flush System

• Flush protective gas into pack bags

• 2 or 3 nozzles in one side to adapt various pack size

• With convenient clamp of bag


Package Mould

• Easy to put and take items from mould







Pouching Assistance

 • assist items to be pouched into bag smoothly













Examples:
















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items



Technical Specification








DZ-650 L



  Vacuum Pump Capacity

40m3/h



  Seal  Length | S

650mm



  Distance Between Seal Bar | B

6350mm



  Chamber Depth | D / D*1

440/590mm



  Chamber Size

680×690mm

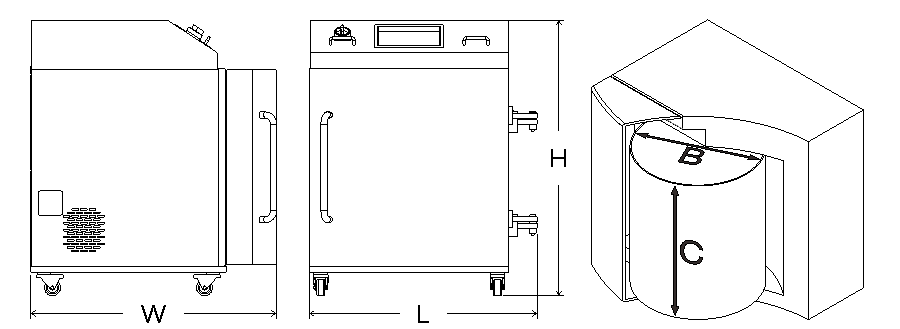

  Max Diameter Of Bucket | B

480mm



  Max Height Of Bucket | C

605mm



  Power

1.1kW



  Connection*2

380V/50Hz,3Phase



  Net Weight / Gross Weight

243/308kg



  Dimensions | W x L x H  (mm)

1000×925×1130



  Shipping Dimensions (mm) 1070×995×1310



  Circle Time
1-2/min






  *1 with high DOM-Lid     *2 could be customized
